Have dual pulleys and ready for more? Remove the last major restriction and open up the power and potential of your supercharged 3.0T Audi! The stock throttle body is smaller than the...
Have dual pulleys and ready for more? Remove the last major restriction and open up the power and potential of your supercharged 3.0T Audi!

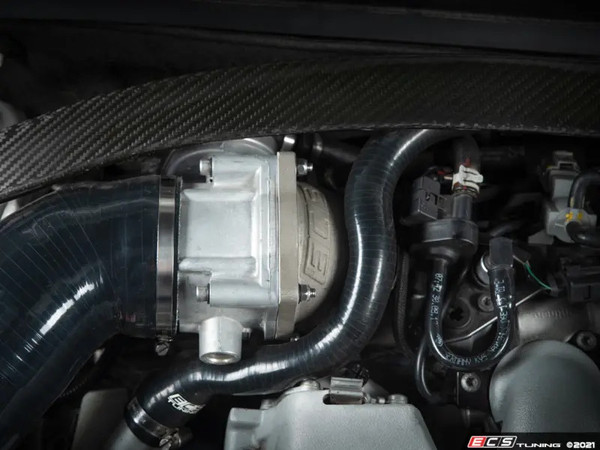

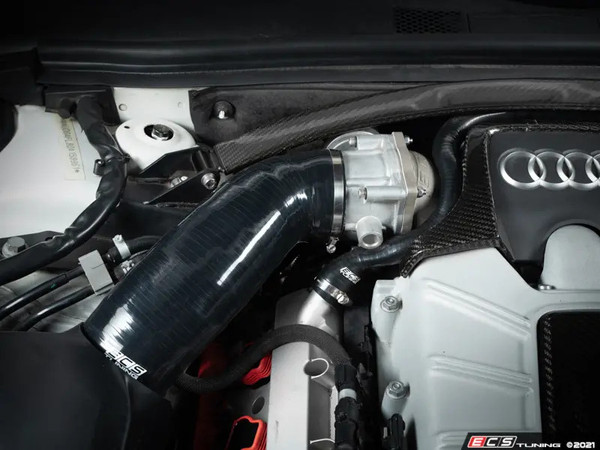

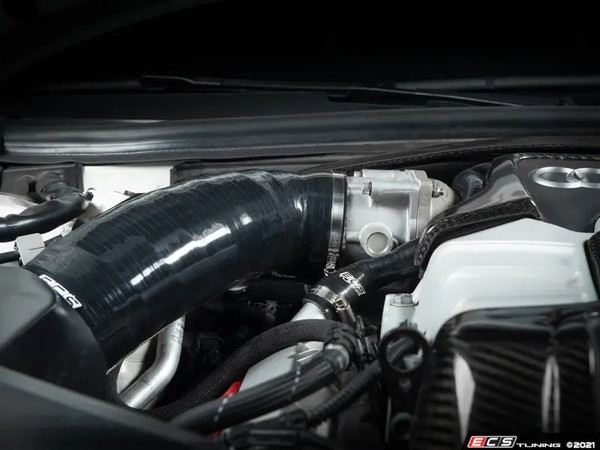

The stock throttle body is smaller than the supercharger inlet creating a massive restriction and directly responsible for power loss. ECS Tuning's in-house designed and engineered Performance Throttle Body Upgrade will do the trick. Designed with a smooth flow path in mind, we start off with a wire reinforced silicone inlet that resists collapse and is stepped in the internal diameter to create a smooth transition to the throttle body. We then went with a high quality OEM Mopar 80mm throttle body that is 10mm larger and has 30% more cross sectional area than OE. The final step is the cast aluminum adapter housing with port matched internal diameters to provide the smoothest flow path possible. On our test car equipped with IE dual pulley 93 octane 80mm throttle body tune, ECS exhaust (valves open, stock catalytic converters), ECS supercharger heat exchanger, ECS Kohlfaser Luft Technik Intake, ECS supercharger and crank pulley, we saw 415 HP and 385 TQ at the WHEELS. See below for full specs and detailed installation guide!
Adapts lager throttle body to existing 3.0T supercharger
Substantially more airflow capacity, reducing the main pre-supercharger restriction point
Works with ECS Tuning intakes and requires modification to fit other brands
80mm inside diameter Mopar throttle body (10mm larger than OE)
30% more cross sectional area over the stock throttle body
Cast aluminum adapter optimized for flow with port matched inside diameters
Included wiring harness for plug and play installation
Works with ECS B8 carbon strut brace
Wire reinforced silicone inlet tube to resist collapse with increase flow
Internal diameter matched stepped silicone for smooth transition
Mopar throttle body with ECS adapter had a flow rate of 435 CFM @ -10 in H2O test pressure
Stock throttle body had a flow rate of 375 CFM @ -10 in H2O test pressure
415WHP @ 6850 RPM
385WTQ @ 3900 RPM
Test car upgrades: IE dual pulley 93 octane 80mm throttle body tune, ECS exhaust (valves open, stock catalytic converters), ECS supercharger heat exchanger, ECS Kohlfaser Luft Technik Intake, ECS supercharger and crank pulley
**Dual pulley upgrade and corresponding throttle body tune is required. Due to the increase in power output, ECS highly suggests supporting mods such as our heat exchanger, intake, and exhaust.
