MQB Billet / Polyurethane Dogbone Mount Bushing Insert - ES#4158732

1 reviews Write a Review
$72.39
$65.16
SKU:
ES#4158732
5 customers are viewing this product

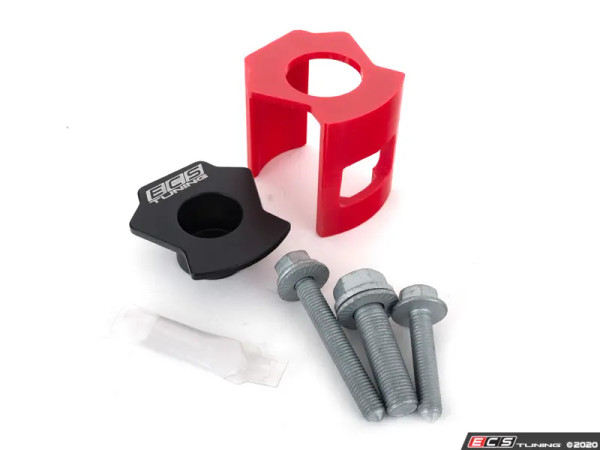

MQB Billet / Polyurethane Dogbone Mount Bushing Insert - ES#4158732

$72.39
$65.16

Our ECS Tuning MQB Billet / Polyurethane Dogbone Mount Bushing Insert offers a more engaging driving experience, with crisper throttle response and reduced driveline slop without significant increases to in-cabin NVH*.

The performance subframe mount bushing insert was engineered in-house by our industry leading R&D department, resulting in countless hours of research and testing to establish the best possible design for minimizing driveline deflection while retaining the vehicles everyday driving comfort. ECS Tuning's primary goal was to achieve a comfortable and compliant ride while maximizing performance, and real world test miles put down on multiple vehicles has proven just that. This kit has everything you need for installation including new hardware to replace the torque-to-yield securing bolt installed from the factory, required to be replaced any time they are removed. With the ECS Tuning Dogbone Mount Bushing Insert, power lost through mount deflection is redirected right where you want it, straight to the wheels.



Features include:

  • Reduction in dogbone/subframe mount movement
  • Increased drivetrain rigidity and response
  • Black anodized 6061-T6 aluminum mounting plate for durability and corrosion resistance
  • ​90A durometer polyurethane bushing insert features upper subframe bushing engagement, which was specifically engineered to keep loading along the axis of the pendulum arm mount. Our unique design maintains low levels of NVH* and accommodates fitment of both Version 1 and Version 2 subframe bushings.
  • Long-term tested on multiple vehicles for real-world qualification
  • Includes hardware to replace the factory torque-to-yield bolts for the pendulum mount and subframe bushing insert
  • Proudly engineered in-house and made in America!



Being a relatively simple process, if you're mechanically inclined you should have no problem installing the mount in your own garage in under 30 minutes. For assistance with installation, please see our in-depth installation PDF available under the Installation tab.



* DSG/Automatic transmission models may experience more NVH than manual transmissions.

** Accommodates fitment into what is commonly referred to "Version 1" and "Version 2" subframe bushings. Our unique design fits all MQB chassis vehicles listed under the "Fits These Cars" tab.

Previous Revisions
  • 010935ECS02
  • 010935ECS05
  • 010935ecs05KT
  • 010935ecs07KT
Cross Reference
  • 5Q0198037, 5Q0198037A, 5Q0198037B, 5Q0198037F, dogbone, subframe, pendulum

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi 8V S3 Quattro 2.0T
Audi A3 8V FWD 1.4 e-tron
Audi A3 8V FWD 1.8T
Audi A3 8V FWD 2.0T
Audi A3 8V FWD TDI
Audi A3 8V Quattro 2.0T
Audi MK3 TT (2014+) Quattro 2.0T
Volkswagen Alltrack All 1.8T Gen3
Volkswagen Arteon 4Motion 2.0T Gen3
Volkswagen Arteon FWD 2.0T Gen3
Volkswagen Golf VII Hatchback 1.8T Gen3
Volkswagen Golf VII Sportwagen 1.8T Gen3
Volkswagen Golf VII Hatchback 2.0T Gen3
Volkswagen Golf VII Hatchback TDI
Volkswagen Golf VII Sportwagen TDI
Volkswagen Golf VII Facelift FWD 1.8T Gen3
Volkswagen Golf VII Facelift FWD 2.0T Gen3
Volkswagen Golf VII R 4Motion 2.0T Gen3
Volkswagen Golf VII R Facelift 4Motion 2.0T Gen3
Volkswagen Golf VII SportWagen Facelift 4Motion 1.8T Gen3
Volkswagen Golf VII SportWagen Facelift FWD 1.8T Gen3
Volkswagen Jetta VII GLI 2.0T Gen3
Volkswagen Tiguan MQB 4Motion 2.0T Gen3
Volkswagen Tiguan MQB FWD 2.0T Gen3
