Billet Aluminum Tunnel Brace Kit - Front & Rear - Black Anodized - ES#4609303

(No reviews yet) Write a Review
$234.54
$199.36
SKU:
ES#4609303
Availability:
Warehouse Transfer
5 customers are viewing this product

Billet Aluminum Tunnel Brace Kit - Front & Rear - Black Anodized - ES#4609303

$234.54
$199.36

​The ECS Tuning Billet Tunnel Brace Kit for the modern day MQB chassis replaces the thin stamped steel braces installed from the factory. The substantial added thickness and width ensures a more rigid connection to both sides of the tunnel. The chassis brace is CNC machined out of 6061-T6 billet aluminum and beautifully anodized in your choice of gloss red or gloss black to offer both great looks and durability.



PART DESIGN

  • In-house designed and engineered using FARO ARM laser scanning technology and SolidWorks 3D CAD modeling for precision fitment

  • Made from a solid block of 6061-T6 aluminum

  • Features a chunky 13mm front and 8mm rear thickness for added rigidity

  • Designed intentionally to aid in larger diameter exhaust clearance

  • Anodized in your choice of Type II gloss red or gloss black finish

  • Post-anodized machined ECS Tuning logo

  • Compatible with factory side belly covers with no trimming required



PERFORMANCE FEATURES

  • Our tunnel braces are a precision engineered structural component that ensures power is transferred properly and not lost through chassis flex, without any perceivable increase in NVH.



PRODUCT DEVELOPMENT

  • Our ECS Billet Tunnel Brace Kit was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.



INSTALLATION AND SUPPORT

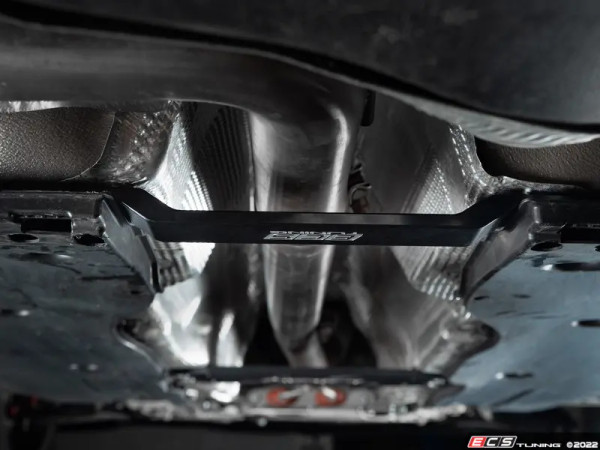

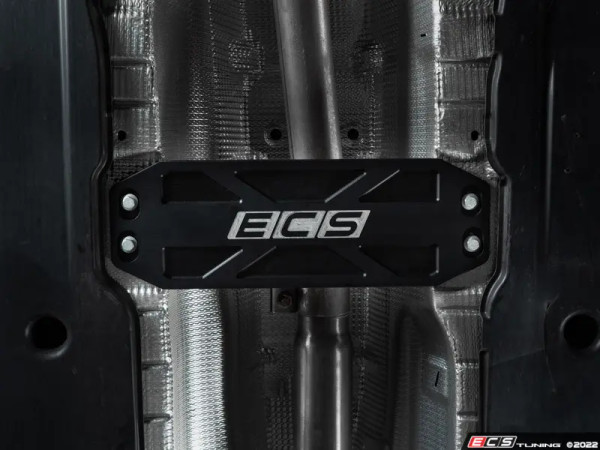

  • ​Installation is simple. The brace mounts into the factory position and re-uses the OEM hardware.

  • Mounting bolts are reusable. Replacements are available under ES466771 for the front and ES470794 for the rear. Torque all to 20 Nm.

  • This product is not compatible with our ECS Aluminum Street Shield Tunnel Brace.



Cross Reference

  • 5Q0804421B
  • 5Q0802128
  • 5Q0802128

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi 8V S3 Quattro 2.0T
Audi A3 8V FWD 1.4 e-tron
Audi A3 8V FWD 1.8T
Audi A3 8V FWD 2.0T
Audi A3 8V FWD TDI
Audi A3 8V Quattro 2.0T
Audi MK3 TT (2014+) Quattro 2.0T
Volkswagen Alltrack All 1.8T Gen3
Volkswagen Arteon 4Motion 2.0T Evo4
Volkswagen Arteon 4Motion 2.0T Gen3
Volkswagen Arteon FWD 2.0T Evo4
Volkswagen Arteon FWD 2.0T Gen3
Volkswagen Atlas 4Motion 2.0T Gen3
Volkswagen Atlas 4Motion 3.6L V6
Volkswagen Atlas FWD 2.0T Gen3
Volkswagen Atlas FWD 3.6L V6
Volkswagen Atlas Cross Sport 4Motion 2.0T Gen3
Volkswagen Atlas Cross Sport 4Motion 3.6L V6
Volkswagen Atlas Cross Sport FWD 2.0T Gen3
Volkswagen Atlas Cross Sport FWD 3.6L V6
Volkswagen Golf VII Hatchback 1.8T Gen3
Volkswagen Golf VII Sportwagen 1.8T Gen3
Volkswagen Golf VII Hatchback 2.0T Gen3
Volkswagen Golf VII All 2.0T Gen3
Volkswagen Golf VII Hatchback TDI
Volkswagen Golf VII Sportwagen TDI
Volkswagen Golf VII Facelift FWD 1.4T
Volkswagen Golf VII Facelift FWD 1.8T Gen3
Volkswagen Golf VII Facelift FWD 2.0T Gen3
Volkswagen Golf VII R 4Motion 2.0T Gen3
Volkswagen Golf VII R Facelift 4Motion 2.0T Gen3
Volkswagen Golf VII SportWagen Facelift FWD 1.4T
Volkswagen Golf VII SportWagen Facelift 4Motion 1.8T Gen3
Volkswagen Golf VII SportWagen Facelift FWD 1.8T Gen3
Volkswagen Golf VIII FWD 2.0T Evo4
Volkswagen Golf VIII R 4Motion 2.0T Evo4
Volkswagen Jetta VII Sedan 1.4T
Volkswagen Jetta VII Sedan 1.5T
Volkswagen Jetta VII All 1.4T
Volkswagen Jetta VII GLI 2.0T Gen3
Volkswagen Jetta VII GLI Facelift 2.0T Gen3
Volkswagen Taos 4Motion 1.5T
Volkswagen Taos FWD 1.5T
Volkswagen Tiguan MQB 4Motion 2.0T Gen3
Volkswagen Tiguan MQB FWD 2.0T Gen3

Kit Contents

Description Brand Qty

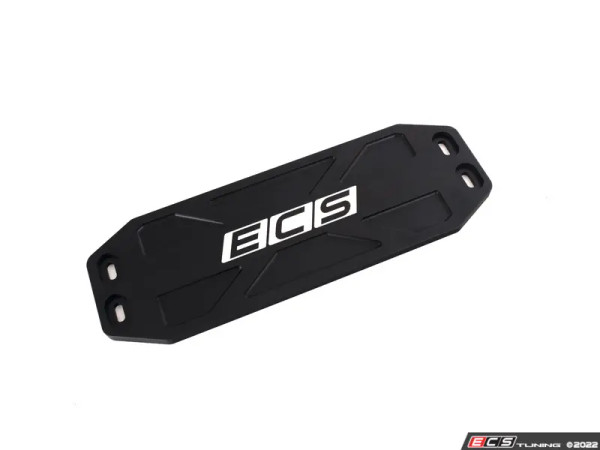

Billet Aluminum Tunnel Brace - Rear - Black Anodized ECS - Corporate Logo 1
Billet Aluminum Tunnel Brace - Front - Black Anodized ECS - Corporate Logo 1
